6004 Fiber Optic Illuminator
Product Description
The 6004/6004-AS is a good solution for existing fiber optic installations when the fiber remains in good condition. It easily installs on existing Fiberstars 6000 series illuminator bases. This is also a great solution for those installations which do not lend themselves well to a Fiber to LED conversion, such as when a pool has perimeter fiber around the coping.

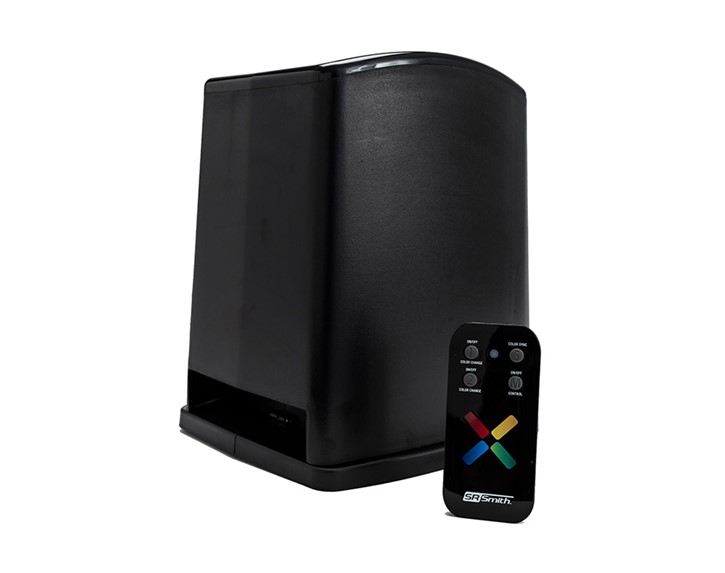

While the 6004 can be a good option, some pool owners would like to update their fiber system with LED illumination. In this case S.R.Smith Fiber to LED conversion kits is a straightforward and cost effective solution. These units are available with several different light combinations, along with a PowerTower transformer that will mount directly on the Fiberstars 6004 or 2004 illuminator base, there by eliminating extra complicated wiring.
Key Features
- Corrosion-resistant polycarbonate enclosure rated NEMA 3R
- 120 VAC 60 Hz
- Metal Halide lamp with an average life of 6000 hours
- Will support up to a total of 450 individual fibers
- Two models available: 6004 and 6004 AS, which is used in applications when more than one illuminator is required, and the lights needs to be synchronized
Part Number(s): 6004, 6004-AS, Y20-6000 (replacement lamp), RM 6000 (remote control kit)
